EXG480X

EXG480X

Available models: EXG480X

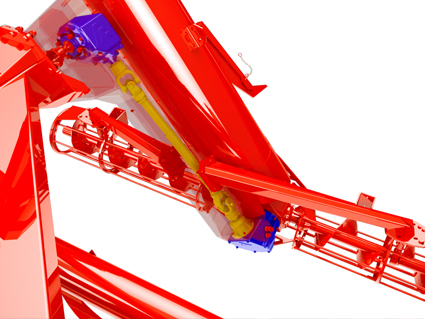

·  New rear driveshaft transmission with top and bottom right-angle gearboxes connected with each other by means of a cardan shaft.

·  The augers’ guards are free from obstacles for a better grain flow.

·  Less maintenance needed.

·  Unloading performance: 380 t/h

·  Power required: from 90 HP

·  Rolls 9 and10-ft bags up to 500-ft long.

·  Tube/auger diameter: 430 mm (17 in)

·  Horizontal auger diameter: 250 mm (9 3/4 in)

·  Maximum hydraulic power: 180 bar 60 LPM.

·  Simple to adjust: It is very easy to swing into transport or working position.

·  Modern design: allows an easier unloading operation and minimizes the risk of bag damage.

·  Grain pusher: It ensures a better end of bag.

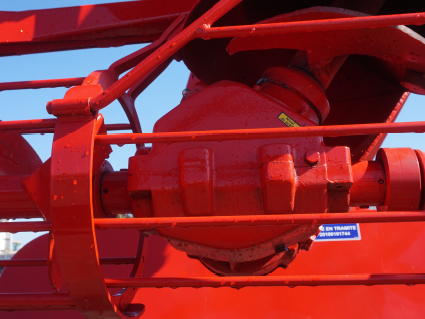

·  Hydrostatic movement: The machine moves automatically as the bag is winded up by the roll. It has a speed adjustment system and a sturdy reduction gearbox.

·  Extra-reinforced chassis.

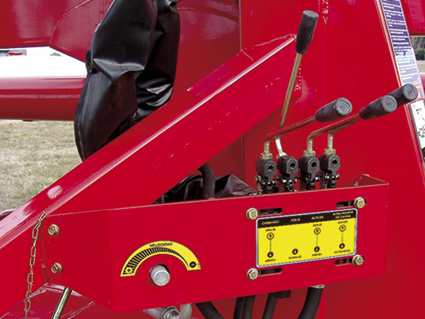

·  Independent hydraulic controls

·  Adjustable knife: to cut the bag at the ideal angle.

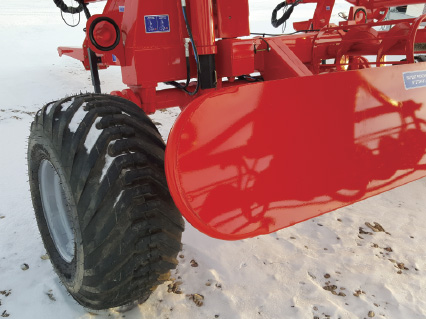

·  Axles and tires: Reinforced axle system to accommodate the extra weight when unloading in wet and soft ground conditions. High flotation tires (400 x 60 x 15.5”).

·  Electrostatic polyurethane paint
